The R1-Pro
System Architecture
Three patented innovations working together: a monolithic dual-resin ballistic composite, Miura-ori fold geometry, and edge AI autonomous deployment.
01 Monolithic Architecture
No mechanical hinges, no fabric membranes. The fold capability is intrinsic to the panel material itself, eliminating the hinge failure mode present in all prior art.
02 Miura-Ori Ballistic Geometry

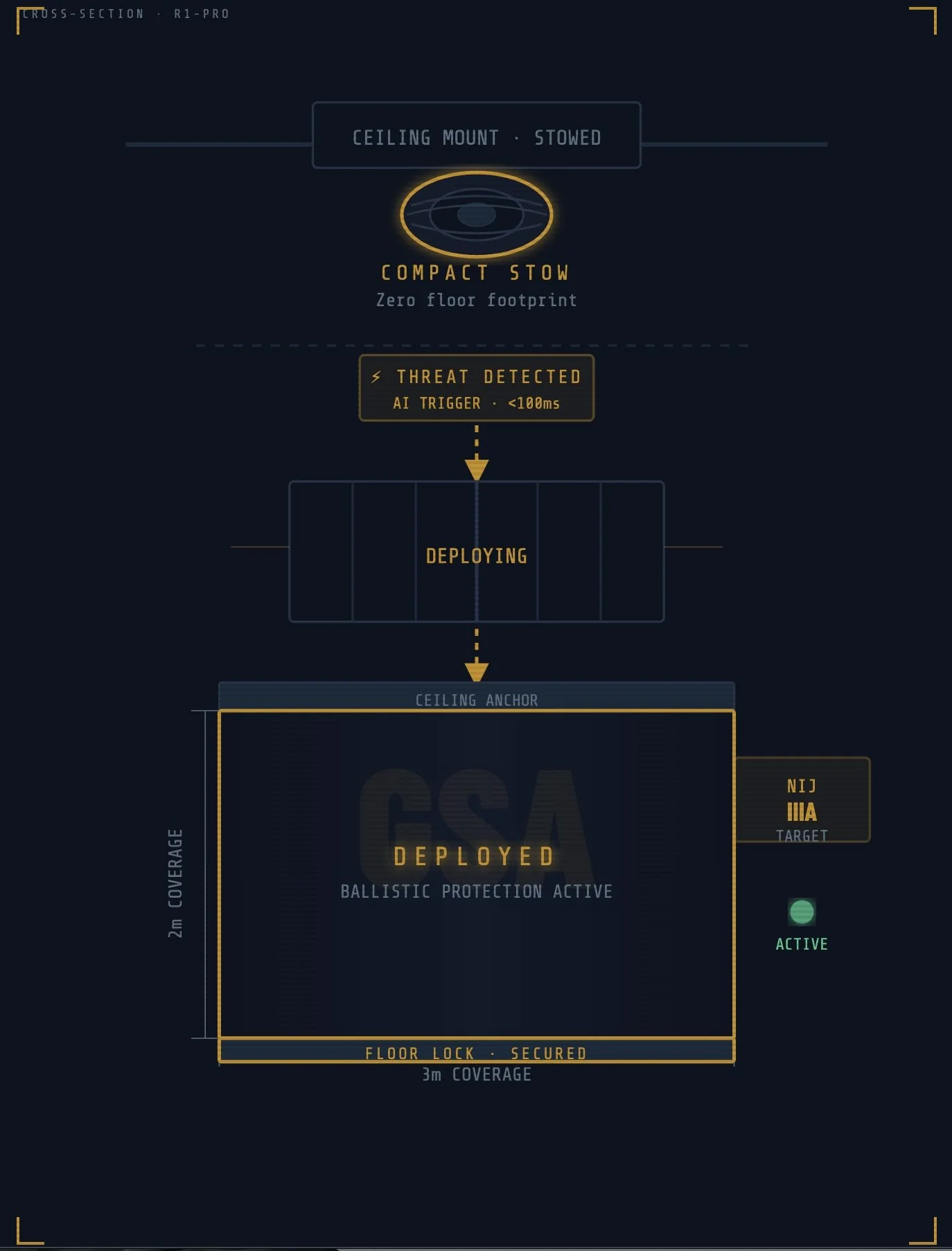

The Miura-ori fold pattern provides deterministic, single-degree-of-freedom deployment from a 0.3m diameter roll to a 2m×3m protective surface. The geometry is mathematically precise — deployment path is fully predictable, enabling reliable autonomous actuation.
03 Edge AI Autonomous Deployment
The D-400 processor runs threat classification at the edge — no cloud dependency, no network latency. Full pipeline from camera exposure through solenoid actuation completes in under 100ms. The system responds faster than any human operator can.
04 Ceiling-Mount Zero-Footprint Install
The B-200 aluminum cassette mounts flush to ceiling. No floor space consumed, no visual signature when stowed. IP65-rated housing. Deploys downward and locks to floor anchor points. Compatible with standard drop-ceiling and structural ceiling installation.
05 NIJ Level IIIA Target Certification
12-layer Kevlar KM2 Plus laminate is designed to achieve NIJ Standard-0101.07 Level IIIA protection — stopping .357 SIG FMJ and .44 Magnum SJHP projectiles. Formal certification testing through HP White Laboratory planned for Phase II.
